Ordering Procedure

Specify Part Number - 53-385
Next, specify the number of operator stations*

For example, if you need four operator stations, your order number would look like this 53-385-4

*Keyed selector switches and legend plates are supplied based on this number.

live

Finding a Part Number

Model Number: UL-101-2P

Description: 2 Pole Double Throw Relay 120vac

Relay Contact Rating: 16 amps

Ordering Procedure: If customized assemblies are required, please consult the factory. When ordering please specify quantity required.

Notes: Relay operates when hand is inserted into sensors actuation tunnel.

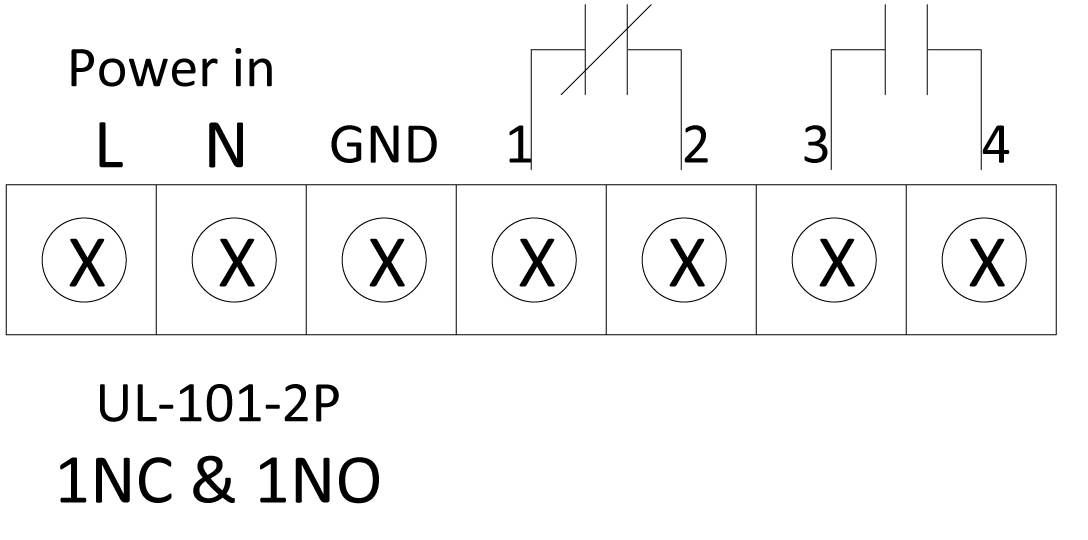

Wiring Configuration:

2 Pole Relay Wiring Configuration

live

Model Number: UL-101-4P

Description: 4 Pole Double Throw Relay 120vac

Relay Contact Rating: 8 amps

Ordering Procedure: When ordering, please specify quantity desired and Model Number. Then add the suffix 4P to the Model Number to designate the UltraTouch Model to be supplied with a 4 pole double throw relay configuration. Examples: UL-101-4P, UL-102-4P, UL301-4P, UL-401-4P, UL-501-4P.

Notes: Relay operates when hand is inserted into sensors actuation tunnel.

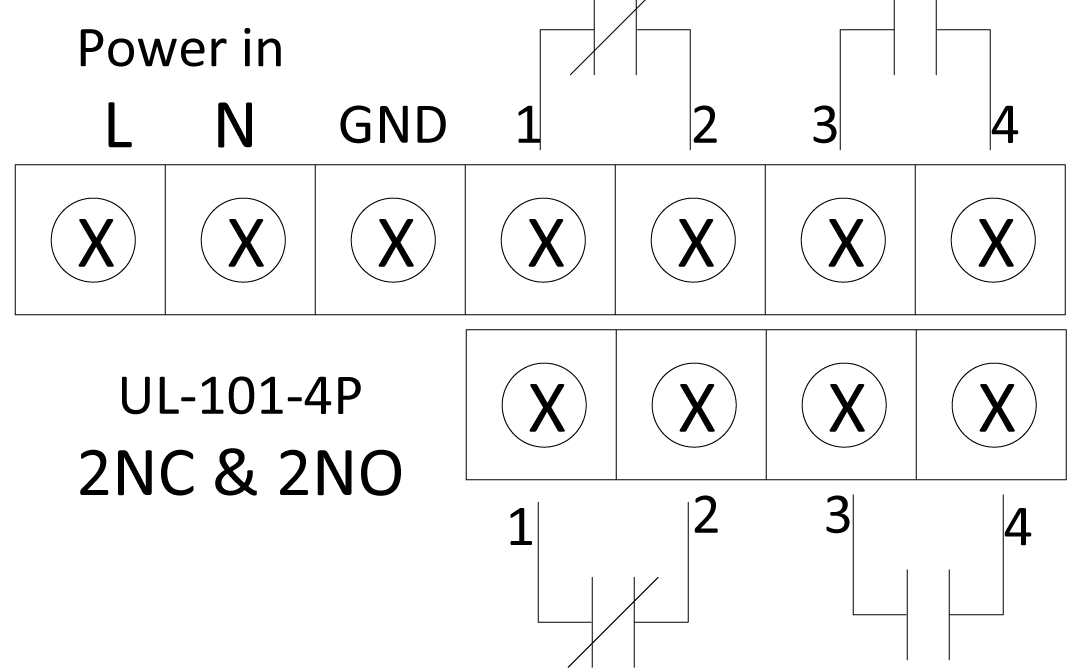

Wiring Configuration:

4 Pole Wiring Configuration

live

Model Number: UL-101-2P-DC

Description: 24VDC Voltage System 2 Pole Double Throw Relay

Relay Contact Rating: 16 amps

Ordering Procedure: When ordering, please specify quantity desired and Model Number. Then add the suffix. 2P-DC to the Model Number to designate the Model to be supplied for a 24VDC 2 pole system. Examples: UL-101-2P-DC, UL-102-2P-DC, UL-301-2P-DC, UL-401-2P-DC, UL-501- 2P-DC.

Notes: Relay operates when hand is inserted into sensor actuation tunnel.

Wiring Configuration:

2 Pole Wiring Configuration

live

Model Number: UL-101-4P-DC

Description: 24vdc Voltage System 4 Pole Double Throw Relay

Relay Contact Rating: 8 amps

Ordering Procedure: When ordering, please specify quantity desired and Model Number. Then add the suffix 4P-DC to the Model Number to designate the Model to be supplied for a 24VDC 4 pole system. Examples: UL-101-4P-DC, UL-102-4P-DC, UL-301-4P-DC, UL-401-4P-DC, UL-501-4P-DC.

Notes: Relay operates when hand is inserted into sensor actuation tunnel.

Wiring Configuration:

4 Pole Wiring Configuration

live

Please Note: UltraTouch® machine actuation devices are not to be used on full revolution power presses or on machinery utilizing restraints or pullout devices as the point of operation guarding systems.

Print this page

UltraTouch Patent Number 5,410,148 - U.S. Patent and Trademark Office
