Model DR
DIN-rail Controller and Light Curtain
Dimensions

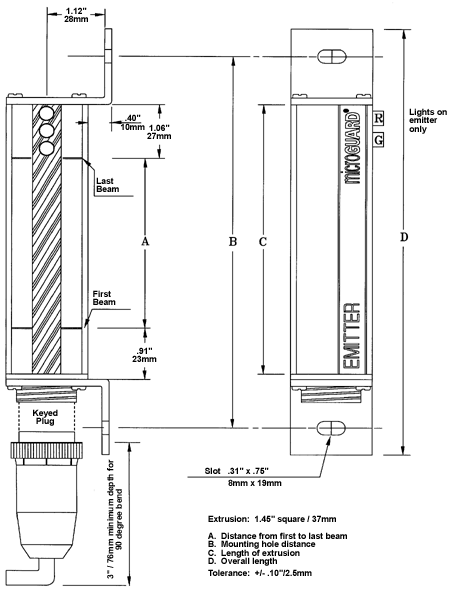

Pylons with Fixed Mounting Brackets

Model	DIM A (In/mm)	DIM B (In/mm)	DIM C (In/mm)	DIM D (In/mm)
DR-04	3.50 / 89	7.20 / 183	5.35 / 136	8.20 / 208
DR-08	7.50 / 190	11.20 / 284	9.35 / 238	12.20 / 310
DR-12	11.50 / 292	15.20 / 386	13.35 / 339	16.20 / 411
DR-16	15.50 / 394	19.20 / 488	17.35 / 441	20.20 / 513
DR-20	19.50 / 495	23.20 / 589	21.35 / 542	24.20 / 615
DR-24	23.50 / 597	27.20 / 690	25.35 / 644	28.20 / 716
DR-28	27.50 / 698	31.20 / 792	29.35 / 745	32.20 / 818
DR-32	31.50 / 800	35.20 / 894	33.35 / 847	36.20 / 919
DR-36	35.50 / 902	39.20 / 996	37.35 / 949	40.20 / 1021
DR-40	39.50 / 1003	43.20 / 1097	41.35 / 1050	44.20 / 1123
DR-44	43.50 / 1105	47.20 / 1199	45.35 / 1152	48.20 / 1224
DR-48	47.50 / 1206	51.20 / 1300	49.35 / 1253	52.20 / 1326
DR-52	51.50 / 1308	55.20 / 1402	53.35 / 1355	56.20 / 1427
DR-56	55.50 / 1409	59.20 / 1504	57.35 / 1457	60.20 / 1529
DR-60	59.50 / 1511	63.20 / 1605	61.35 / 1558	64.20 / 1631
DR-64	63.50 / 1613	67.20 / 1707	65.35 / 1660	68.20 / 1732
(Incremental additives for longer pylons available)

MicroGuard Fixed Pylon

live

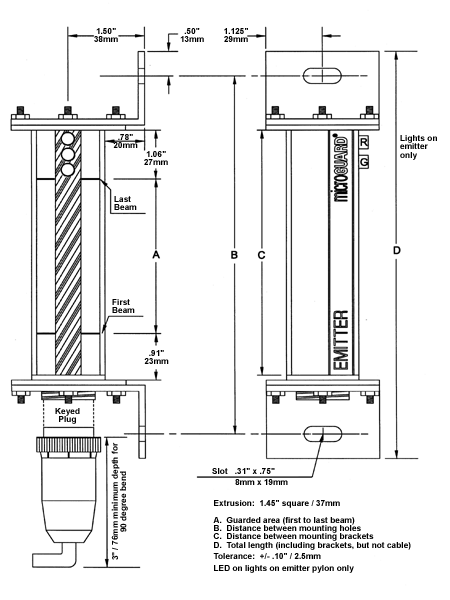

Pylons with Swivel Mounting Brackets

Model	DIM A (In/mm)	DIM B (In/mm)	DIM C (In/mm)	DIM D (In/mm)
DR-04	3.50 / 89	7.93 / 201	5.35 / 136	8.93 / 227
DR-08	7.50 / 190	11.93 / 303	9.35 / 238	12.93 / 328
DR-12	11.50 / 292	15.93 / 405	13.35 / 339	16.93 / 430
DR-16	15.50 / 394	19.93 / 506	17.35 / 441	20.93 / 532
DR-20	19.50 / 495	23.93 / 608	21.35 / 542	24.93 / 633
DR-24	23.50 / 597	27.93 / 709	25.35 / 644	28.93 / 735
DR-28	27.50 / 698	31.93 / 811	29.35 / 745	32.93 / 836
DR-32	31.50 / 800	35.93 / 913	33.35 / 847	36.93 / 938
DR-36	35.50 / 902	39.93 / 1014	37.35 / 949	40.93 / 1040
DR-40	39.50 / 1003	43.93 / 1116	41.35 / 1050	44.93 / 1141
DR-44	43.50 / 1105	47.93 / 1199	45.35 / 1152	48.93 / 1224
DR-48	47.50 / 1206	51.93 / 1319	49.35 / 1253	52.93 / 1344
DR-52	51.50 / 1308	55.93 / 1421	53.35 / 1355	56.93 / 1446
DR-56	55.50 / 1409	59.93 / 1522	57.35 / 1457	60.93 / 1548
DR-60	59.50 / 1511	63.93 / 1624	61.35 / 1558	64.93 / 1649
DR-64	63.50 / 1613	67.93 / 1725	65.35 / 1660	68.93 / 1751
(Incremental additives for longer pylons available)

MicroGuard Pylon Swivel

live

DIN-rail Controller Module

5.87" (149mm) length x 4.33" (110 mm) depth x 2.95" (75 mm) height.

DIN-rail Specs
