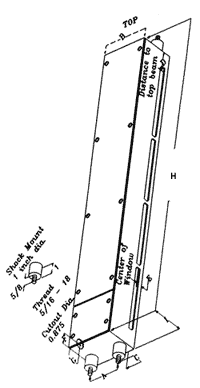

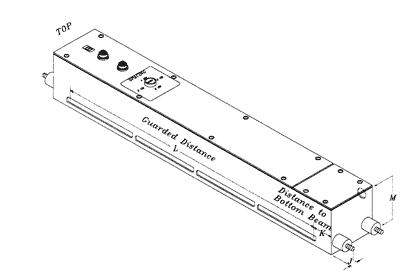

PPG Series Dimensions


Dimensions \| Find a Part Number \| Accessories

All Models
Dim A	3.00” (76mm)
Dim B	4.25” (108mm)
Dim C	1.00” (25mm)
Dim D	1.87” (48mm)
Dim E	0.62” (16mm)
Dim F	1.00” (25mm)
Dim G	1.00” (25mm)
Dim I	3.25” (83mm)
Dim J	0.62” (16mm)
Dim M	4.25” (108mm)

			Model	Dim H (box length)	Dim K (last to end)	Dim L (first to last beam)
			PPG-24	28.87” (733mm)	1.87” (48mm)	25.22” (641mm)
			PPG-30	36.25” (921mm)	2.87” (73mm)	31.52” (801mm)
			PPG-36	42.12” (1070mm)	2.87” (73mm)	37.82” (961mm)
			PPG-42	48.37” (1229mm)	2.87” (73mm)	44.12” (1121mm)
			PPG-48	54.75” (1391mm)	2.87” (73mm)	50.42” (1281mm)
			PPG-60	67.25” (1708mm)	2.87” (73mm)	63.02” (1601mm)
			PPG-72	79.75” (2026mm)	2.87” (73mm)	75.62” (1921mm)
			PPG-84	91.75” (2330mm)	2.87” (73mm)	88.22” (2241mm)
			PPG-96	103.75” (2635mm)	2.87” (73mm)	100.82” (2561mm)
Additional Information & Resources:
For detailed technical information on the PPG Series Safety Light Curtain and other Pinnacle Systems safety products download Installation Manuals. To speak to a sales representative in the United States, please call (800) 569-7697. Request a catalog or price quote online or send an e-mail. All products are manufactured to meet or exceed all applicable OSHA and ANSI standards and are made in the U.S.A.		Download our PDF PPG Series Brochure
