Model DR
DIN-rail Controller and Light Curtain
Product Overview

DIN-rail Mountable Safety Relay Controller Module Meets or exceeds OSHA, ANSI, CSA, RIA, CE standards, UL Subject 491, UL1998, IEC 61496 standard parts 1 and 2

DIN-Rail Controller Features:

• Snap-out wiring terminals reduce both installation and maintenance time
• Universal controller for all pylon sizes
• Small and compact DIN-rail
• Mountable Controller
• Small and compact light curtain pylons
• Multiple status indicators for operator awareness
• Quick disconnect wiring at pylons
• Ultra fast response time
• Largest selection of sizes available
• Largest selection of options available
• Multi-lingual diagnostic display available
• Diverse redundant design concept
• Utilizes captive contact force-guided safety relays
• Largest selection of blanking options available—fixed or floating blanking
• Patented “auto blank” capable controller
• Remote status display (RSD)™ capable
• Diagnostic message display built-in
• External relay checking built-in
• Emergency stop safety input built-in
• Auxiliary relay output built-in
• Fault relay output built-in
• Remote latching reset built-in
• Remote indicator lights output provision built-in
• Push button reset with memory
• Analog output for non-safety related applications (optional) -10v to +10v or 0 to +10v (consult factory)
• Built-in operator interface
• Two-year warranty
• Made in the USA

DeviceNet™
Complete system monitoring on DeviceNet™ fieldbus networks. The MicroGuard® controller family is fully compatible with the DeviceNet™ fieldbus and can be connected directly into the fieldbus for non-safety monitoring of system status. DeviceNet™ is the leading low-cost communications link that connects a wide range of automated manufacturing devices for greater usability and convenience. Multiple MicroGuard® controllers can be networked with numerous other devices on a single DeviceNet™ network. Add suffix DN to controller part number for this optional feature.

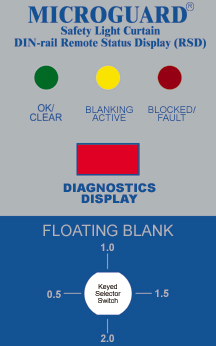

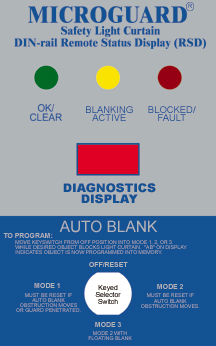

Remote Status Display (RSD)™
The optional Remote Status Display (RSD)™ may be used in conjunction with the MicroGuard DIN-rail Controller. The RSD provides the machine operator and front line supervisor immediate system status and diagnostics when the DIN-rail Controller is mounted inside the machine control panel. The RSD™ diagnostic operator interface can also control all blanking options if that style light curtain is used.

Remote Status Display (RSD)™ Components:

• Red/Green indicator lights
• Diagnostic scrolling message display with 5’ of connector cable
• Keyed selector switch and yellow blanking active indicator supplied if blanking is used

The RSD™ components are mounted on a steel plate and are designed to be exterior panel mounted. The RSD™ option enhances safety and is a time saver at machine set-up and when maintenance diagnostics are required.

• Input Power: 24VDC +/- 20%
• Power Consumption: 7 watts maximum
• Output Circuit: Two Captive contact self-checking safety relays
• Relay Contact Rating: Rated at 8 AMPS @250VAC resistive
  Rated at 16AMPS @ 120 VAC resistive
• Auxiliary Output Contact: 5AMP @ 250VAC resistive
• Input Fuse: 1 AMP FAST BLOW (pico size)
• Fault Output Relay: 5AMP @ 250VAC resistive
• DIN-rail Controller Indicators
  External:
  CLEAR/OK - Green LED
  BLOCK/FAULT - Red LED
  BLANKING ACTIVE - Yellow LED
  BLOCKED - Red LED
  Internal:
  + 5V -- Yellow LEDs (2)
  Relays -- Green LEDs (4)
  + 12V -- Red LED (1)
  - 5V -- Green LED (1)
• Diagnostic Message Display/Operator Interface: English or Spanish available. Customized languages also available, consult factory.
• Emergency Stop Input Built-In
• Push Button Reset with Memory
• Enclosure: Gray polycarbonate with clear cover. Provides IP40, UL94V-1
• Enclosure Dimensions: 5.87" (148mm) length x 4.33 (110mm) depth x 2.95 (75mm) height
• Enclosure Mounting: 35mm DIN-rail mountable or Mounting screws on corners of enclosure requiring two combo-head screws (3.5 x 0.6mm x 14mm or #6 x .5)
