Model CE
Solid State Outputs Global
Safety Light Curtain
Specs and Dimensions
• Input Power: Emitter pylon: 24vdc @ .125A
Receiver pylon: 24vdc @ .125A
(solid state outputs are PNP which may draw up to .25A
additional)
•
Internal
fuses:
Emiter Pylon: F1 @ 1A
Receiver
Pylon: F1 @ 1A,
F2 @ 1/2A, F3 @ 1/2A
•
Outputs
: Receiver pylon:
monitored, 2 outputs, solid state PNP
(24vdc when GREEN, float when
RED/off). Max .25A draw each.
•
Indicators
: Emitter pylon: Yellow,
Red, Green.
Receiver pylon: Yellow, Red,
Green.
•
Construction
: Painted aluminum
extrusion with Acrylic IR lens and Viton Seals providing
NEMA 4 (IP65) protection.
Cables are both 21’ (6.4m) long
with a flexible in-line connector 12” (254mm) from the base of
each pylon. (Shielded)
Emitter
pylon: Four
conductor 24AWG (Shielded)
Receiver
pylon: Eight
conductor 24AWG (Shielded)
Pylons: Yellow, with swivel mounting
brackets
Cables: Black, shielded
•
Temperature
: 0 to 50c (up to 95%
humidity, non-condensing)
•
Safety
Software:
Tested to UL1998 and ISO 9001 standards
•
Pylon
Enclosures:
Tested to IEC 60529
• EMC Testing to IEC 61000-4
standards
•
Dimensions
: 1.45" (36.8mm) x 1.95”
(49.5mm)
• Beam Spacing & Minimum
Object Sensitivity (MOS)
.5" (12.7mm) .55" (14mm)
MOS
1" (25.4mm) 1.18" (30mm)
MOS
Special
Order:
4" (102mm) active area followed
by a 4" (102mm) gap)
4" (102mm) active area followed
by a 8" (204mm) gap)
•
Response Time and
Scanning Frequency:
< 30 mSec total, 10
khz
•
Shock
: Tested to withstand high
vibration (using shock mounts)
•
Self-Checking
: Every
15mSec
•
Scanning
distance
From 1’ to 20’ standard
(1-6m)
From 21’ to 35’ (6-10.7m)
extended range (optional)
The range is stated as a two
digit number within the Model #
•
Specials
: Custom designed light
curtains for special applications.
Consult factory.
•
Surface Mount Technology
• One Year
Warranty
• Made in
USA
***Model CE ouput circuits must be used with
either "control reliable" PLC input circuits, or a safety
module. ***

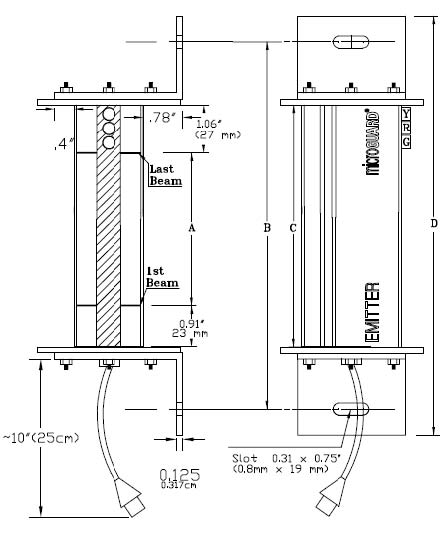

Pylons with Swivel Mounting
Brackets
|
Model
|
DIM A
(In/mm)
|
DIM B
(In/mm)
|
DIM C
(In/mm)
|
DIM D
(In/mm)
|
|
CE-04
|
3.50
/ 89
|
7.93
/ 201
|
5.35
/ 136
|
8.93
/ 227
|
|
CE-08
|
7.50
/ 190
|
11.93 / 303
|
9.35
/ 238
|
12.93 / 328
|
|
CE-12
|
11.50 / 292
|
15.93 / 405
|
13.35 /
339
|
16.93 / 430
|
|
CE-16
|
15.50 / 394
|
19.93 / 506
|
17.35 / 441
|
20.93 / 532
|
|
CE-20
|
19.50 / 495
|
23.93 / 608
|
21.35 / 542
|
24.93 / 633
|
|
CE-24
|
23.50 / 597
|
27.93 / 709
|
25.35 / 644
|
28.93 / 735
|
|
CE-28
|
27.50 / 698
|
31.93 / 811
|
29.35 / 745
|
32.93 / 836
|
|
CE-32
|
31.50 / 800
|
35.93 / 913
|
33.35 / 847
|
36.93 / 938
|
|
CE-36
|
35.50 / 902
|
39.93 / 1014
|
37.35 / 949
|
40.93 / 1040
|
|
CE-40
|
39.50 / 1003
|
43.93 / 1116
|
41.35 / 1050
|
44.93 / 1141
|
|
CE-44
|
43.50 / 1105
|
47.93 / 1199
|
45.35 / 1152
|
48.93 / 1224
|
|
CE-48
|
47.50 / 1206
|
51.93 / 1319
|
49.35 / 1253
|
52.93 /
1344
|
|
CE-52
|
51.50 / 1308
|
55.93 / 1421
|
53.35 / 1355
|
56.93 / 1446
|
|
CE-56
|
55.50 / 1409
|
59.93 / 1522
|
57.35 /
1457
|
60.93 / 1548
|
|
CE-60
|
59.50 / 1511
|
63.93 / 1624
|
61.35 / 1558
|
64.93 / 1649
|
|
CE-64
|
63.50 / 1613
|
67.93 / 1725
|
65.35 / 1660
|
68.93 / 1751
|
(Incremental additives for longer
pylons available)
A. Guarded area (first to
last beam)
B. Distance between mounting holes
C. Distance between mounting brackets
D. Total length (including brackets, but not cable)
Tolerance: +/- .10”/2.5mm
|
