UltraTouch Mounting Dimensions
(in inches)

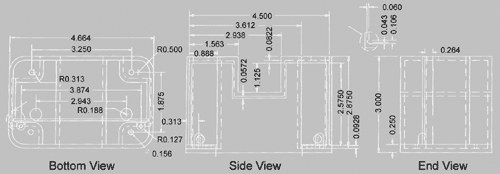

UL-101 UltraTouch®Module
Enclosure Specifications
• Material 0.125 in plastic

UL-101

live

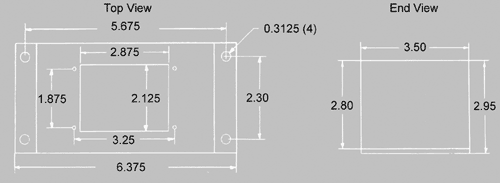

UL-102 Module Base All Styles
Enclosure Specifications
• NEMA 13
• 14 Gauge
• Steel Enclosure

UL-102

live

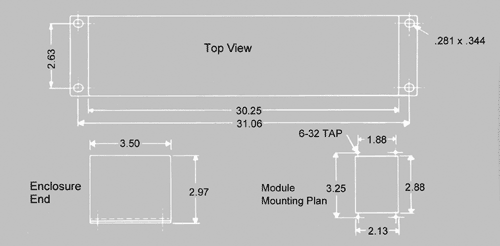

UL- 301/UL- 401/UL- 501 All Styles
Enclosure Specifications
• NEMA 13
• 14 Gauge
• Steel Enclosure

UL-301

live

UL- 601
Enclosure Specifications
• NEMA 12 & 13
• UL 50 Type 12 & 13
• JIC Std. EGP-1967
• CSA Enclosure 5
• IEC 529, IP65
• 14 Gauge
• Steel Enclosure

UL-601

live

Specials: 1. Stainless steel module bases. 2. Cast malleable iron module bases.
