Model CA
Cascading Safety Light Curtain

Cornering Mirrors
Through the use of cornering mirrors, multiple sides or work envelopes can be guarded which enhance safety and reduce downtime related to mechanical and electrical interlock systems. Include a 5% reflectivity loss per mirror when calculating total scanning distance of light curtain.

 Cornering Mirrors

Cornering Mirror Dimensions


DIM A (hole to hole)

DIM B (mirror)

DIM C (total)

 MGM-12  19.45" (494mm)  18.25" (464mm)  20.50" (521mm)
 MGM-18  25.45" (646mm)  24.25" (616mm)  26.50" (673mm)
 MGM-24  31.45" (799mm)  30.25" (768mm)  32.50" (825mm)
 MGM-30  37.45" (951mm)  35.25" (895mm)  38.50" (978mm)
 MGM-36  43.45" (1104mm)  42.25" (1073mm)  44.50" (1130mm)
 MGM-42  49.45" (1256mm)  48.25" (1226mm)  50.50" (1282mm)
 MGM-48  55.45" (1408mm)  54.25" (1378mm)  56.50" (1435mm)
 MGM-60  67.45" (1713mm)  66.25" (1683mm)  68.50" (1739mm)
 MGM-72  79.45" (2018mm)  78.25" (1988mm)  80.50" (2045mm)
 MGM-84  91.45” (2323mm)  90.25” (2292mm)  92.50” (2350mm)
 MGM-96  103.45” (2628mm)  102.25” (2597mm)  104.50” (2654mm)


Pedestal Dimensions (Model 8000)

The heavy duty, all welded steel pedestal floor mounts can be used for mounting either light curtain pylons or cornering mirrors. Sliding mounts on the pedestal are of universal design and are supplied standard. Unique floating base on pedestal is designed to compensate for uneven floors.

Pedestal Dimensions

NOTE: Pedestals must be bolted to the floor, they must not be movable
(ANSI B11.19-2003).

1. Sliding mounts supplied
2. Standard height is 72" (1829mm) - Model #8000 Optional 96" (2438mm) - Model #8096
3. Painted OSHA yellow
4. Pedestal is 12 gauge steel
Base Plate is 1/4" (6.35mm) steel plate

Ordering Procedure: Specify Model Number and Quantity.



Swing Mount Brackets
(Model 9000 and 9500)

Excellent method of mounting the light guard for press brakes or when the light guard is to be moved for die setups or machine maintenance. Model 9000 consists of three 180-pivot points along with light guard diagonal movement capability for virtually unlimited light guard positioning. Two-inch square tubing 3/16" thick painted OSHA yellow which mounts directly onto the machine housing and makes for a heavy duty yet versatile mounting bracket. Model 9500 consists of two 180-pivot points and one adjustable length arm.

 Model 9000

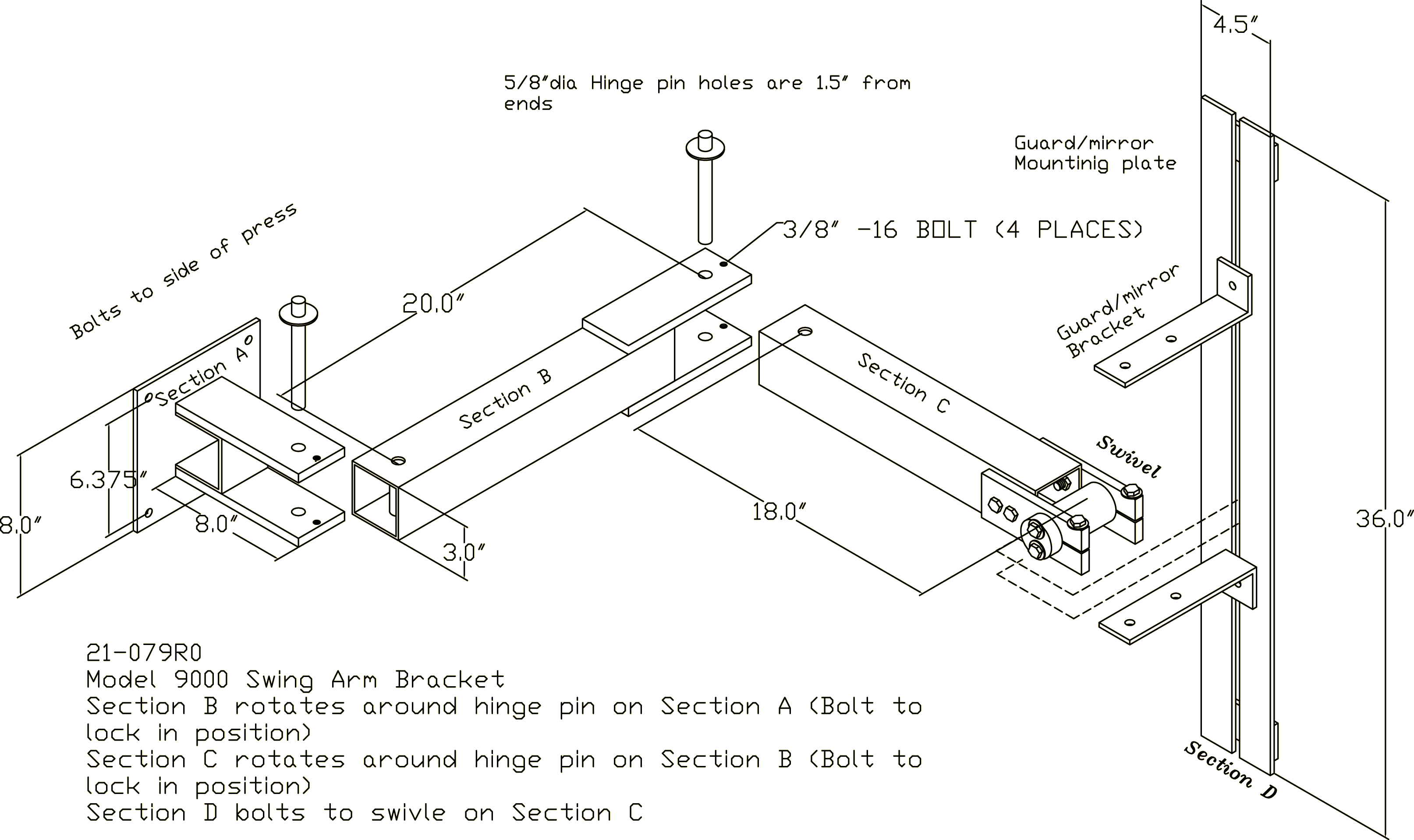

Model 9000 Swing Mount Bracket

 Model 9500

Model 9500 Swing Mount Bracket


Stainless Steel Mounting Brackets for Model 8000 or 8096 Pedestals

Stainless Steel Mounting Brackets for Model 8000 or 8096 Pedestals


Stainless Steel Mounting Brackets for Model 8000 or 8096 Pedestals

Part #11-183 (sold individually)
Mounting Brackets are used for mounting safety light curtains or mirrors.



Dual Mounting Brackets (Part Number 11-184)
          11-184   11-184



Part #11-184 (sold individually)
Dual Mounting Brackets for mounting light curtain transmitter and receiver on the Model 8000 Pedestal at 90° angles.

Example of Light Curtain Mounted using 11-184

Above is an example of two light curtains mounted using the 90° Dual Mounting Brackets (11-184).


Polycarbonate Tube
Optional Polycarbonate tube which will encase the pylons for high impact protection. (Pictured at right)

 Polycarbonate Tube
